My portable equipment

My portable operating equipment (for SOTA summits and Parks) includes the following…..

TRANSCEIVERS

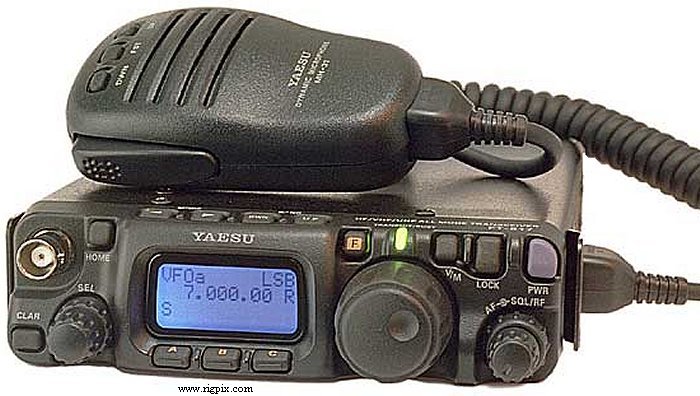

Yaesu FT-817nd

Little 5 watt transceiver.  This was the world’s first self-contained, battery-powered, Multi-mode Portable Transceiver, covering the HF, VF, and UHF bands.  Used mostly for my SOTA activations (those where I have to climb), and also my park activations where I have to walk some distance (e.g. along the Heysen Trail).

http://www.yaesu.com/indexVS.cfm?cmd=DisplayProducts&ProdCatID=102&encProdID=06014CD0AFA0702B25B12AB4DC9C0D27

ft817nd

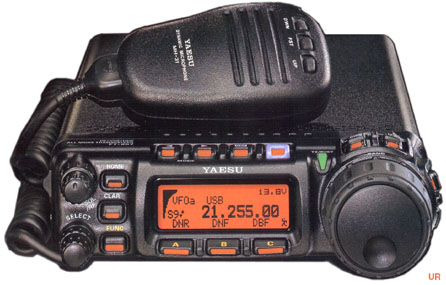

Yaesu FT-857D

The Yaesu FT-857D  is the world’s smallest HF/VHF/UHF mobile transceiver.  The FT-857D is a multimode transciever, up to 100w output.  Used for the less strenuous SOTA peaks, and also for the majority of my park activations.  I generally run 40 watts.

http://www.yaesu.com/indexVS.cfm?cmd=DisplayProducts&ProdCatID=102&encProdID=8CBB7C4BDBAF40129AD4253A4987523C

0857

ANTENNAS

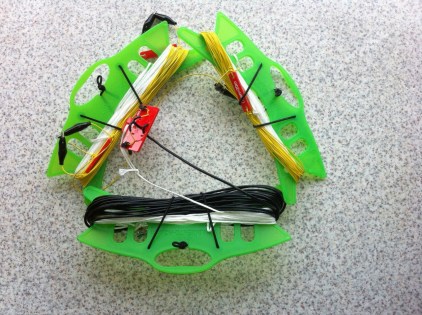

SOTA Beams Bandhopper 40m/20m linked dipole

Linked dipoles appear to be the antenna of choice with a large number of SOTA & Parks activators.  Changing between bands is accomplished by simply connecting the different sections of the dipole together.

SOTAbeams_BandHopper_HF_Link_Dipole_Antenna

They can be purchased through SOTA Beams…

http://www.sotabeams.co.uk/

The SOTA Beams Ban Hopper antennas include:

  • a resonant antenna-no ATU required
  • feeder (approx 10m)
  • guys for telescopic police (6-8m recommended)
  • three wire winders for tange free operating
  • three pegs for the guys
  • one bag to keep the kit together
  • instructions online

Or linked dipoles can be easily home brewed.  For the links you can choose crocodile clips, spades, banana plugs, Anderson power poles, RCA plugs, etc.

The beauty of linked dipoles is that they require no tuning, are easy to change bands, easy to erect and dismantle, and easy to repair and maintain including in the field.


Rob DM1CM has an excellent linked dipole designer applet which can be found at…..

http://www.sotamaps.org/extras.php

Other good sites to check out are Peter VK3ZPF’s WordPress site at…..

http://vk3zpf.com/link-dipole

Peter VK3PF’s WordPress site at…..

https://vk3pf.wordpress.com/2013/11/16/a-lightweight-link-dipole/

and Amateur Ham at…..

http://amateurham.co/4-band-linked-dipole-how-to/

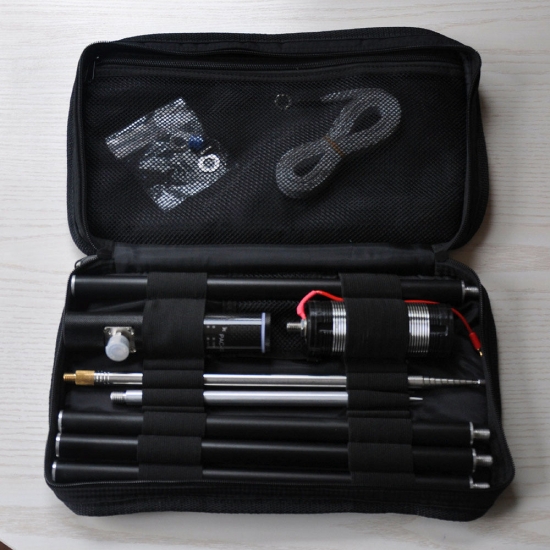

Multi band vertical.

A Chinese version of the BuddiStick, which I purchased off the internet.  I used this for my first 2 SOTA activations before switching to the linked dipole.  Hardly every used anymore.

83462eec27c4b28189a781e615cf6913.image.550x550

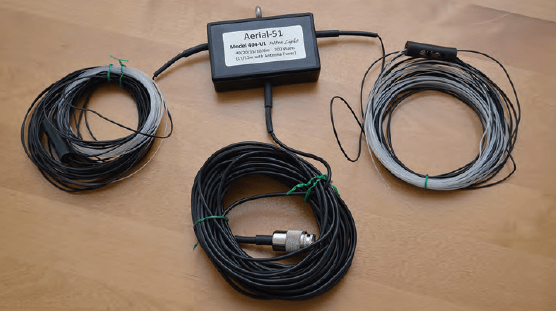

 Spiderbeams Aerial-51 OCF dipole

I am currently field testing a Spiderbeams Aerial 51 Model 404-UL OCF dipole, which was sent to me for free (to field test) by Rick DJ0IP.

RadCom Test of Aerial-51 Model 404-UL-s

Screenshot 2016-03-03 22.46.01.png

OTHER EQUIPMENT.

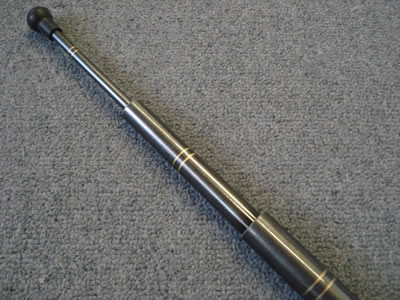

Squid pole

I use a 7 metre heavy duty squid pole to get the antenna up in the air.  The squid poles are purchased from Haverfords in Sydney. In 4 years of portable activating I’ve only snapped one, and that was on an extremely windy summit.  I had attached the squid pole to a 2 m high pole at the trig point with the use of an octopus strap.  And the squid pole snapped twice at its weakest point under extremely windy conditions.

http://www.haverford.com.au/products/recreational-fishing-products/telescopic-squid-poles

telescopic3

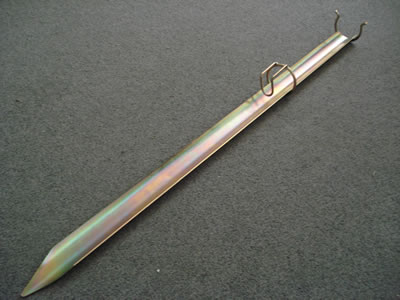

squid pole holder

rodholder

Other options are the telescopic antenna masts sold by SOTABeams.  The SOTAPOLES sold by SOTABeams cannot be exported overseas.

http://www.sotabeams.co.uk/compact-light-weight-10-m-30-ft-mast/

http://www.sotabeams.co.uk/mini-telescopic-fiberglass-poles/

Spiderbeam also sell fibreglass poles and aluminium masts…..

http://www.spiderbeam.com/index.php?cat=c2_Fiberglass%20Poles.html

http://www.spiderbeam.com/index.php?cat=c12_Aluminium%20Masts.html

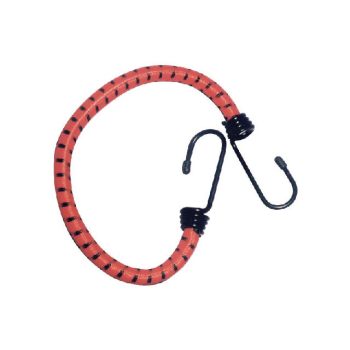

Octopus straps

94025438-D21B-4C93-BCE2-E0E7B62CB3EC_1

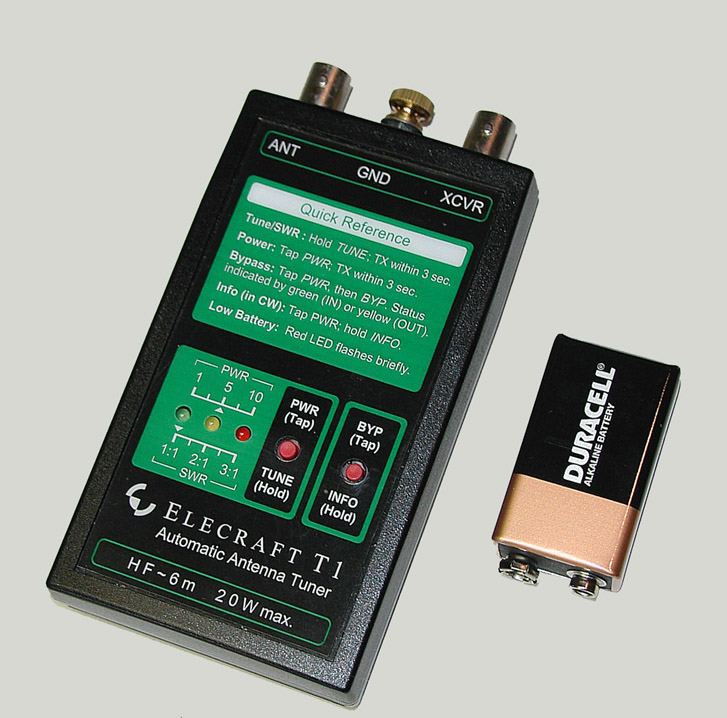

Elecraft ‘T1’ tuner.

The Elecraft T1 tuner weighs just 5 ounces and can be used with any 0.5W to 20 W transceiver covering bands in the 160-6m range.  You can purchase these as assembled and tested, or as an easy to build kit.

http://www.elecraft.com/T1/T1.htm

T1_photo_b1

Turnigy watt meter

161411885179_1

BATTERIES/POWER SOURCE.

When I first started activating SOTA summits (prior to the inception of the WWFF program and the VK5 Parks Award) I used the internal batteries in the Yaesu FT-817nd.  The internal battery pack consists of eight (8) NiMH AA cells in a shrink wrapped package, with the rated capacity of the pack being 1400mAh.  NiMH cells have a nominal voltage of 1.2V, so the total being 9.6V.

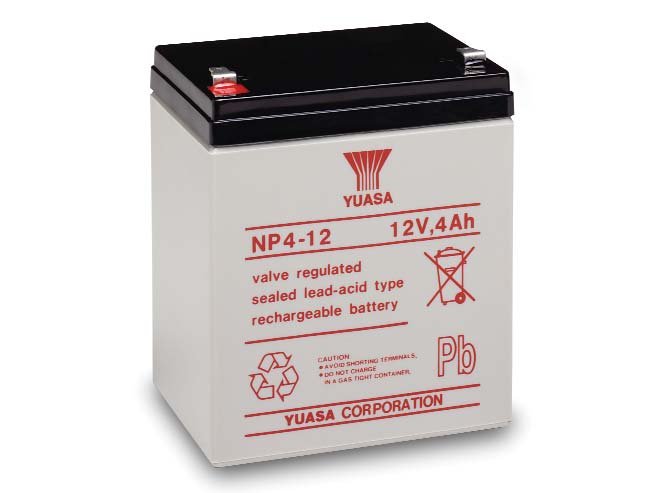

Sealed lead acid 12 v 4Ah battery (SLAB)

I then commenced using 12 v 4Ah SLAB batteries.  But they weigh a little bit.  In fact a total of 1.75 kg.  That was okay for the summits where I did not have to walk far, but it placed a lot of weight in my backpack when I had to hike to the top of the summit (and that is in most cases here in South Australia).

Here is the datasheet for the Yuasa NP4-12 batteries I previously used…….

NP_4_12_DataSheet

yuasa_np412

LiFePo4

For my SOTA activations I now use LiFePo4 (lithium iron phosphate) batteries for SOTA, and generally a 44 amp hour power pack for my park activations.

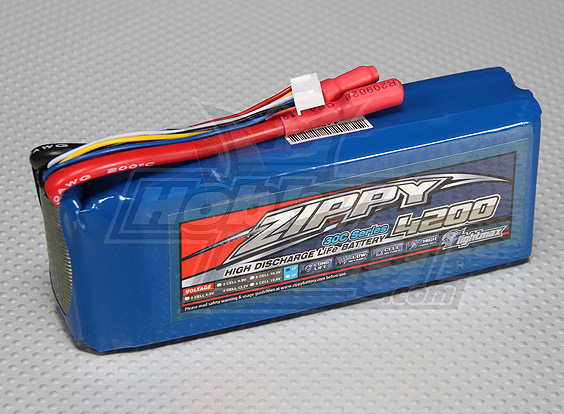

I have two (2) LiFePo4 (lithium iron phosphate) batteries.  One being a 13.2 v 4.2 Ah (4200 mAh) and the other being a 13.2 v 8.4 Ah (8400 mAh).  I purchased these through HobbyKing…..

http://www.hobbyking.com/hobbyking/store/index.asp

The 4.2 Ah LiFePO4 weights just 558 grams.  Much lighter than the 1.75 kg of the 12V 4Ah SLAB.  The 8.2 Ah LiFePO4 weights 1.026 kg.  Still lighter than the SLAB.

Z42004S-30(1)

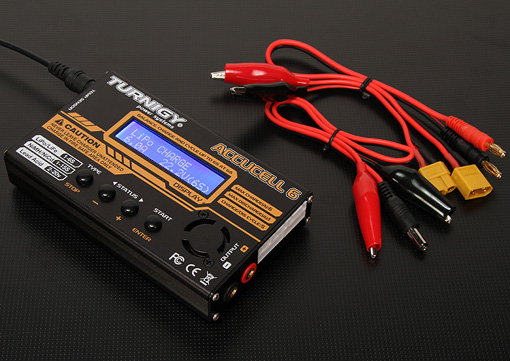

Turnigy balanced charger

ACC6(2)

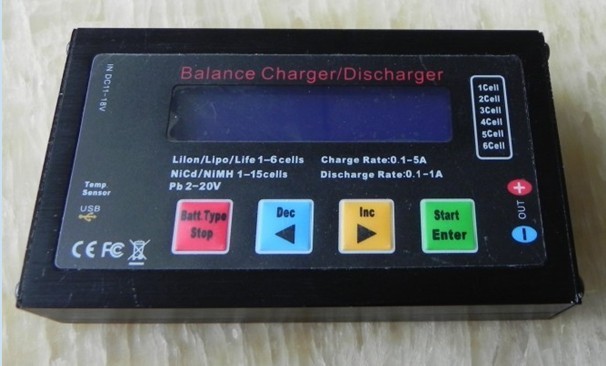

Balanced charger

20110817195944115

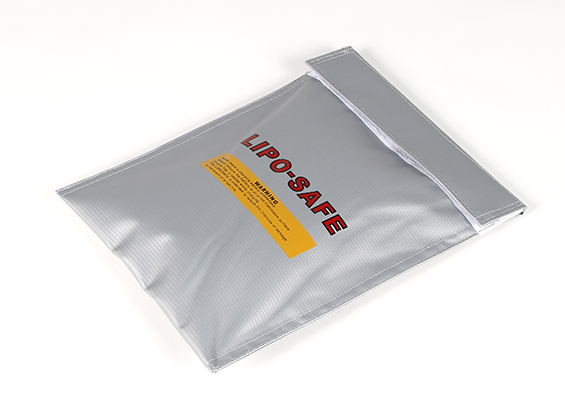

LiPo safe bag

I store my LiFePO4 batteries in LiPo fire retardant battery bags.  The bags are made of super strong fire retardant fiberglass woven fabric and will stand very high temperatures for a reasonable period of time.  The bags are stitched together with an extremely strong fire retardant thread and the flap is secured in place with hook and loop tape.

4364

Peter VK3ZPF has an excellent page which looks at the discharge pattern of a 12V 7.2 Ah SLAB battery compared to that of a 13.2 V 8.4 Ah LiFePO4 battery.  Here is the link……

http://vk3zpf.com/2013/11/portable-battery-choices.html

Peter’s tests clearly show that the LiFePO4 lasts longer, is less in weight, and is smaller in size.  But as Peter points out the cost is higher.  As of 1/3/2016, a 12V SLAB will cost you approximately $25.  Whereas a 13.2 V 4.2 Ah LiFePO4 will cost $62.14.

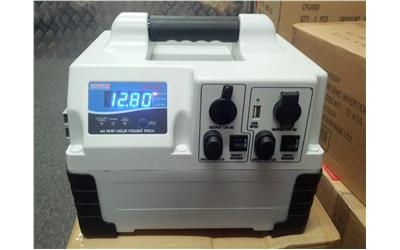

Matson 44 Ah power pack

A commercially made product which in essence is two (2) 22 ah SLAB batteries.

4974D462DF48A54D042BB6831AEF08EF2550D5

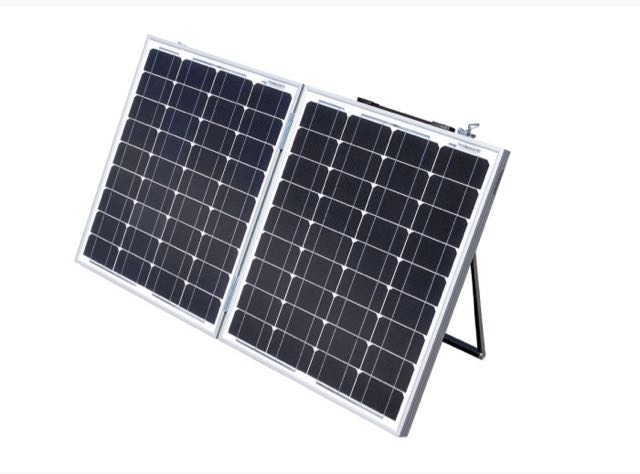

Solar panels.

I use a ‘Blue Apple’ 100 watt split fold solar panel set up during many of my activations.  They consist of two x 50 watt mono crystaline panels hinged together, and weighs a total of 10.1 kg.  The panels are fitted standard with 50 Amp Anderson connector.

Solar panel kits are rated with a nominated Power Rating in Amps.  This rating is a ‘per hour’ rating.  The Blue Apple kit has the ability to harness over 6 Amps per hour.  You multiply with Power Rating by the number of hours of charging available per day and you have the amount of Amp Hours available per day.

Screenshot 2016-04-08 11.42.00



HOW DO I TRANSPORT MY TRANSCEIVERS.

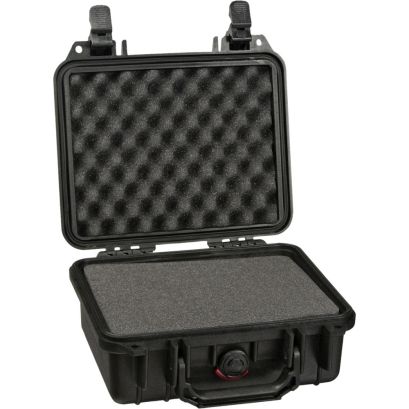

I transport my transceivers in pelican cases which I purchased from Bunnings.  You can cut the foam insert to suit and they provide excellent protection.

Pelican_1200_000_110_1200_Case_with_Foam_40631

For my SOTA activations and parks where I need to walk in, I wrap up the transceivers in some old pillow cases and transport them in my backpack.

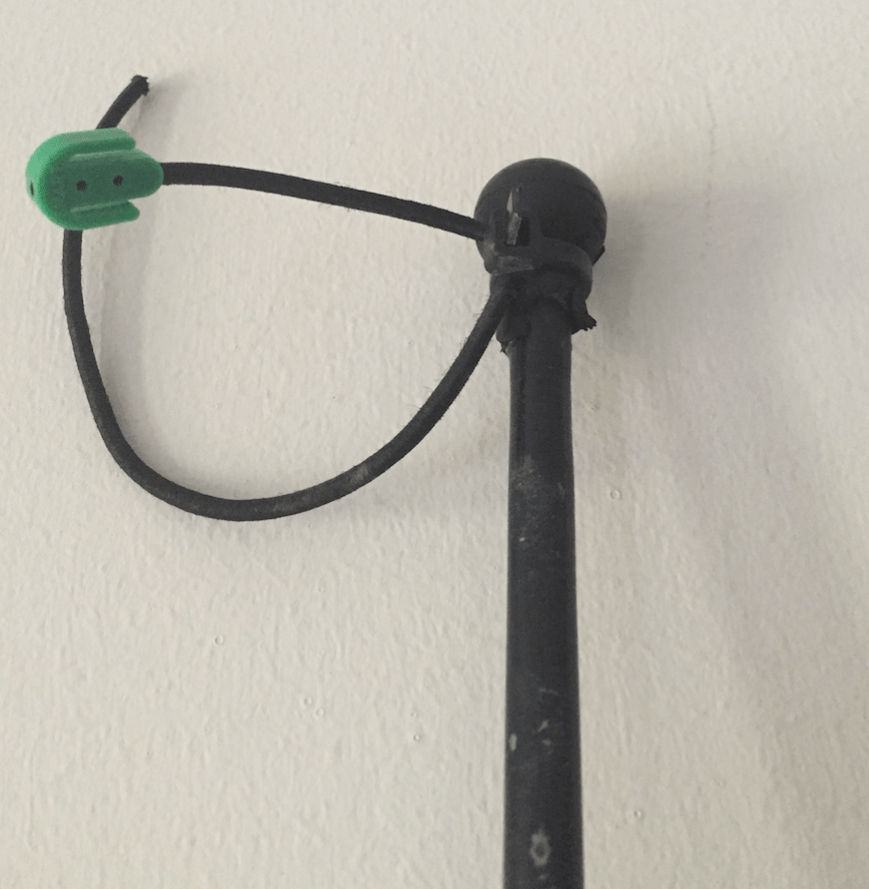

HOW DO I CONNECT MY ANTENNAS TO THE SQUID POLE

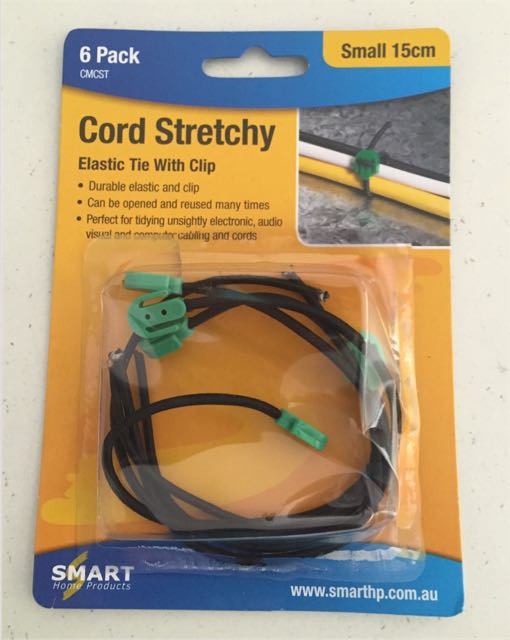

The elastic ‘string’ slides nicely through a hole in the dipole centrepiece and secures nicely into place.  I secured the elastic tie in place with a plastic cable tie.

Screenshot 2015-11-26 15.48.05.png

Screenshot 2016-01-17 16.41.08

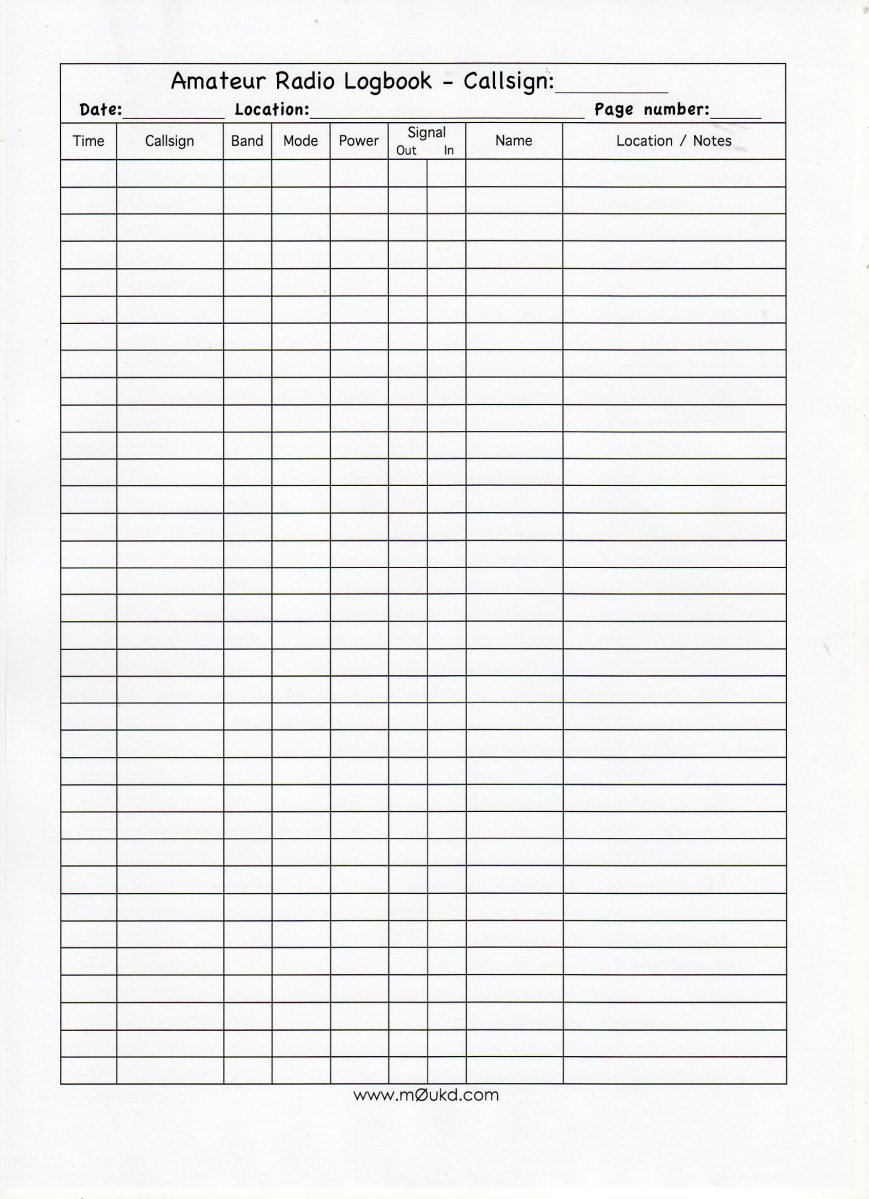

HOW DO I LOG MY CONTACTS?

I have always used a paper log out in the field, but have always used an electronic log at home (MacLoggerDX).  When I get home following a park or SOTA activation, I use a program called Fast Log Entry (FLE) to data enter my contacts.  This creates an ADIF file which I can them upload to MacLogger DX and also to WWFF Logsearch.
